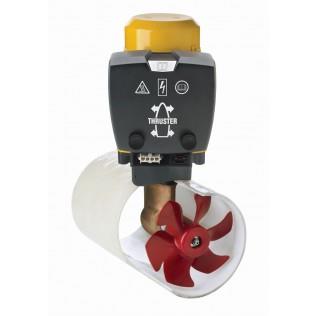

VETUS BOW THRUSTER 25 KGF, 12 VOLT DC

Brand: VETUS

Prezzo: 0,00 €   IVA esclusa
Richiedi preventivo

VETUS bow thruster with 25 kgf thrust force, suitable for boats from 5,5 to 8,5 metres in length. 12 Volt DC version.

DETAILS

Advantages of VETUS bow thrusters
  • A single propeller creates less flow disturbance in the tunnel
  • The VETUS unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  • All VETUS systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All VETUS manoeuvring systems meet the EMC requirements

ADDITIONAL INFORMATION

Voltage (V) 12 V DC
Ignition protection No
Thrust (N / kgf) 250/25
Power (kW) 1,5
Motor, reversible D.C. Yes
Internal tunnel diameter (mm) 110
Weight (kg) 10
Current consumption (A) 200
Continuous operating time (min) 4
Max. operating time (minutes) 4
Main fuse "slow blow" (A) 125
Batteries 12 V, min./max. Ah 1x55 / 1x70
Battery cables, length pos./neg. cables (m/mm²) 0-8/25 8-12/35
Battery main switch: model BATSW / type BPMAIN 250/12

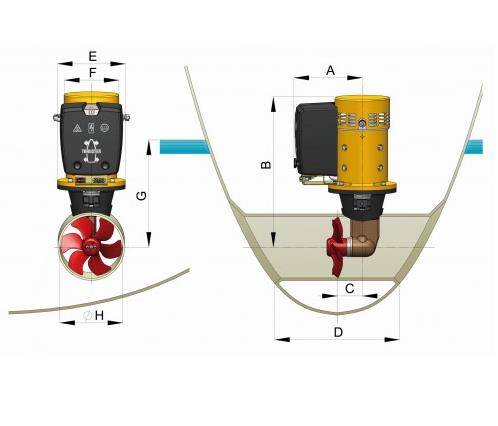

Size A in mm, see drawing 138
Size B in mm, see drawing 297
Size C in mm, see drawing 73
Size D min./max. in mm, see drawing 220/440
Size E in mm, see drawing 149
Size F, diameter in mm, see drawing 112
Size G min. in mm, see drawing 110
Size H, diameter in mm, see drawing 110

Codice: BOW2512D
Codice Originale: BOW2512D
Normalmente disponibile in 2 giorni
