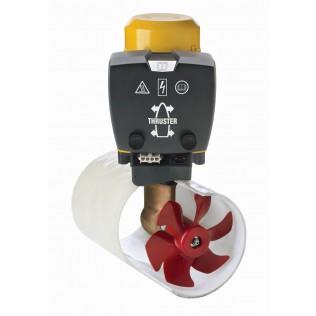

VETUS BOW THRUSTER 45 KGF, 12 VOLT DC

Brand: Vetus

Prezzo: 0,00 €   IVA esclusa
Richiedi preventivo

VETUS bow thruster with 45 kgf thrust force, suitable for boats from 7,5 to 11,5 metres in length. 12 Volt version.

Advantages of VETUS bow thrusters

  • A single propeller creates less flow disturbance in the tunnel
  • The VETUS unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  • All VETUS systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All VETUS manoeuvring systems meet the EMC requirements

ADDITIONAL INFORMATION

Voltage (V) 12 V DC
Ignition protection No
Thrust (N / kgf) 450 / 45
Power (kW) 3
Motor, reversible D.C. Yes
Internal tunnel diameter (mm) 125
Weight (kg) 20
Current consumption (A) 300
Continuous operating time (min) 4
Max. operating time (minutes) 4
Main fuse "slow blow" (A) 250
Batteries 12 V, min./max. Ah 1x105 / 1x200
Battery cables, length pos./neg. cables (m/mm²) 0-12 / 70
Battery main switch: model BATSW / type BPMAIN 250 / 12

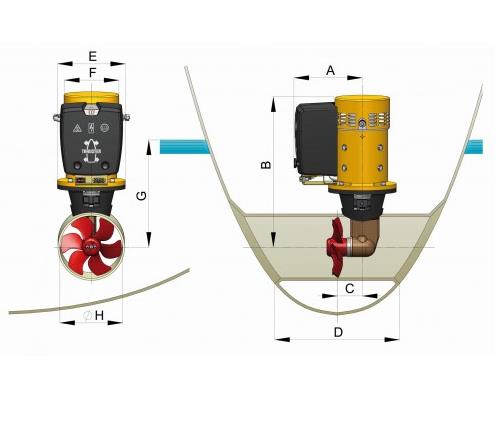

Size A in mm, see drawing 143
Size B in mm, see drawing 365
Size C in mm, see drawing 79
Size D min./max. in mm, see drawing 250 / 500
Size E in mm, see drawing 160
Size F, diameter in mm, see drawing 130
Size G min. in mm, see drawing 125
Size H, diameter in mm, see drawing 125

Codice: BOW4512D
Codice Originale: BOW4512D
Normalmente disponibile in 2 giorni

Prezzo: 0,00 €
Richiedi preventivo
